With rear ramp The HA
![](/fileadmin/img_products/1000/ha_uefw_01_left_front.png)
Quick loading
Suitable for small vehicles and working machinesV drawbar, hot-dip galvanised
13-pin plug and reversing light
Floor plate 15 mm thick
Drop sides made of anodised, double-walled aluminium profiles.
Flap with recessed locks (optional)
Tie-down rings (4 units up to 2050 mm / 6 units up to 2510 mm box length) integrated into the drop sides (only possible with 350 mm drop sides), tractive force 400 kg per lashing ring, Dekra-tested.
Humbaur multifunction lighting is integrated into the underride protection.
Corner stanchions with insert option

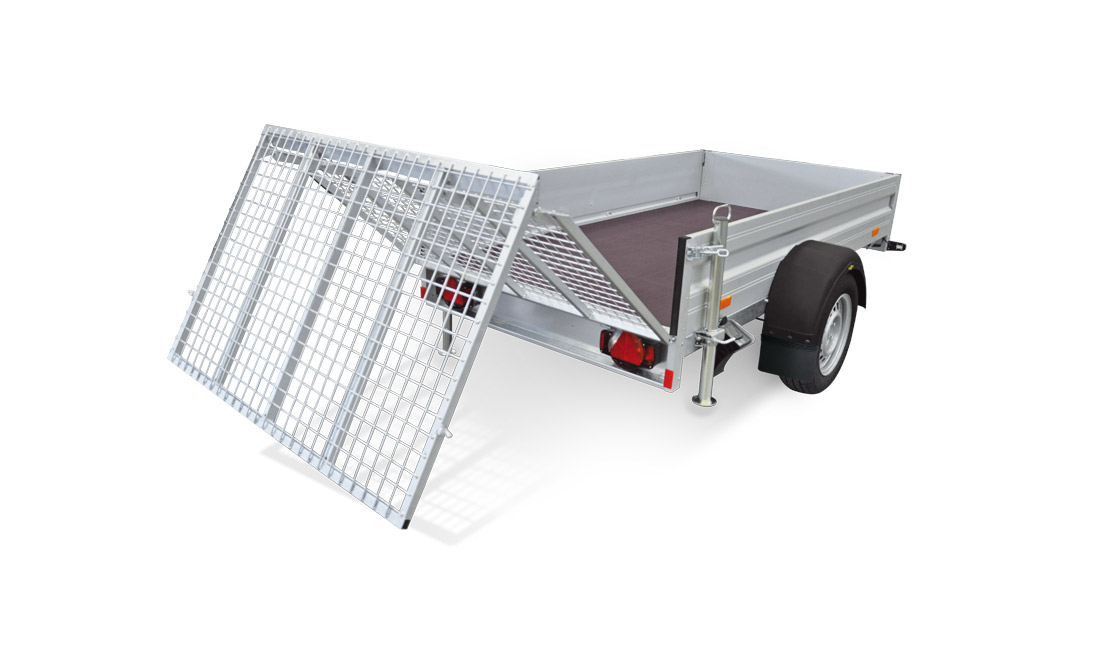

Foldable rear ramp made by steel grid.
![](/fileadmin/_processed_/2/f/csm_ha_uefw_05_3f088f952f.jpg)
![](/fileadmin/_processed_/0/0/csm_ha_uefw_06_0e479c131a.jpg)
The clever box trailer with an intelligent lowering mechanism. The cargo bed moves towards you for loading and unloading. The flat drive-up angle is just 4 to 6 degrees. With the integrated access ramp and upwards opening tailgate, this trailer is the perfect partner for comfortable loading. A solid anti-slip floor and stable side walls with a GRP coating ensure durability. With the optional rocker, it is ideal for transporting motorcycles.
Technical data

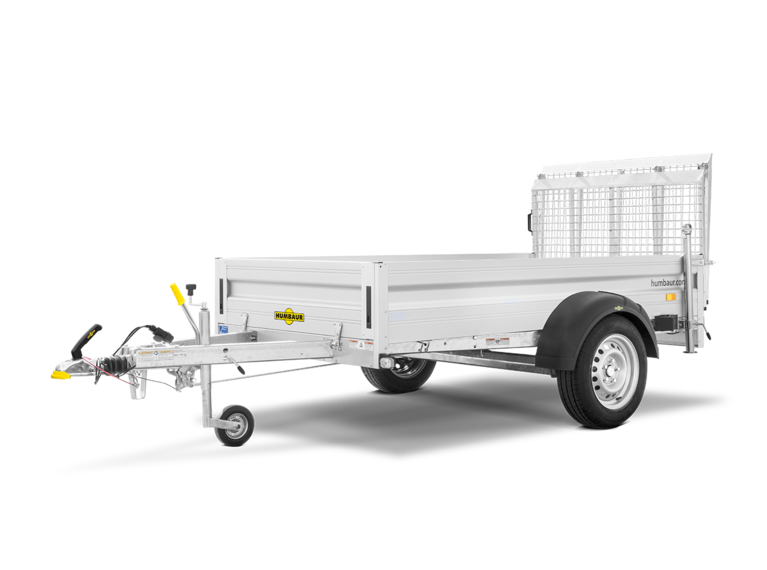

HA Aluminium with rear ramp
![Trailer HA Aluminium with rear ramp in detail](/fileadmin/_processed_/5/5/csm_81_01_568ad1fef4.png)
HA Aluminium with rear ramp Standard equipment
- Multible flexibility model based on the HA 13 25 13
- Serially equipped with foldable rear ramp made by steel grid (max. capacity 500 kg) with eccentric closures grants a safe loading and unloading of your goods
- Integrated lashing system for an optimal cargo securing
- Jockey wheel
- Drop-down on frontside
- Counter-sunk drop-side lockings
- 2 Prop-stands, mounted
- 13-pin plug and reversing light
