Your plant always arrives safely

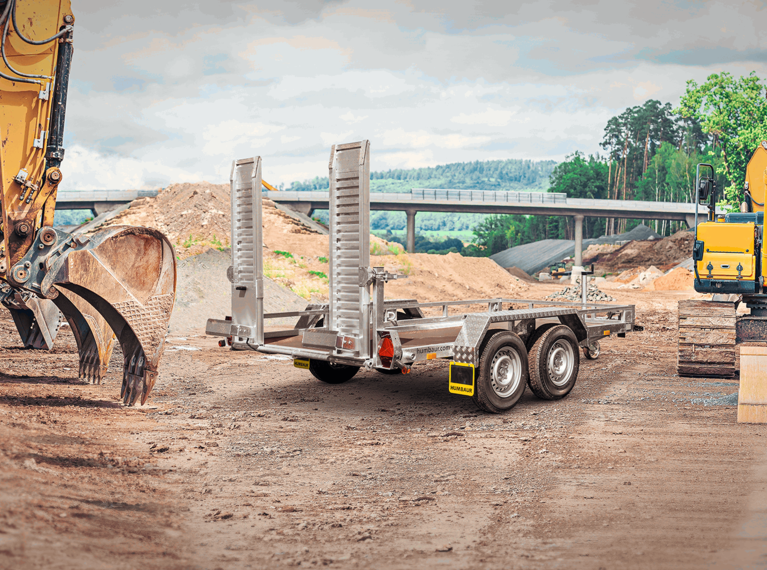

HS Transporter with drive-up ramps

To the models
Fast and safe loading

The most important features of the HS models

Available as a tandem

Easy loading

  • Steel ramps, hot-dip galvanised in an immersion bath
  • Accessible steel mudguards that are flush with the side panels
  • Fully automatic jockey wheel

Professional version

  • Payload-optimised construction machinery transporter
  • Carries a payload of up to 2800 kg
  • Aluminium drive-up ramps with integrated support
  • Around 200 mm high all-round rails
  • As an option with excavator bucket support (folding or fixed), height-adjustable drawbar (without ball head coupling and DIN towing eye) and toolbox

Additional features

  • Body

    Bolted V drawbar, hot-dip galvanised

    Welded side panel/frame construction made of sheet steel, hot-dip galvanised


  • Electrics

    13-pin plug

    Reversing light

    Humbaur multi-function light

  • Securing loads

    Fitted tie-down rings x 12 (6 pairs) in the outer frame for 3000 mm body length and x 14 (7 pairs) for 3750 mm body length; each tie-down ring is able to withstand a tensile force of 1000 kg

Models

  • HS 303016

    Braked, Two axle

    Gross weight:
    3.000 kg
    Load capacity:
    2.340 kg
    Inner length:
    3.000 mm
    Inner width:
    1.600 mm
    from 5.311,00 €
    Configure
  • HS 353016

    Braked, Two axle

    Gross weight:
    3.500 kg
    Load capacity:
    2.770 kg
    Inner length:
    3.000 mm
    Inner width:
    1.600 mm
    from 6.361,00 €
    Configure
  • HS 353718

    Braked, Two axle

    Gross weight:
    3.500 kg
    Load capacity:
    2.680 kg
    Inner length:
    3.750 mm
    Inner width:
    1.850 mm
    from 6.850,00 €
    Configure
  • HS 353516 Profi

    Braked, Two axle

    Gross weight:
    3.500 kg
    Load capacity:
    2.800 kg
    Inner length:
    3.500 mm
    Inner width:
    1.640 mm
    from 7.113,00 €
    Configure
