For daily professional use

HT tandem wheels-in trailer.

To the models
Everything that a professional needs

The most important features of the tandem wheels-in trailer models

Stable

  • Fully hot-dip galvanised frame and chassis
  • Major components, including the side members and underrun protection, protected against corrosion
  • Easy to replace drawbar

Securing loads

  • Lashing rings integrated in a V-shaped outer frame profile; each ring can withstand a tensile force of 400 kg (tested by DEKRA)

Additional features

  • Body

    Side panels made of an anodised, double-walled aluminium

    Base plate, 18 mm thick

    Jockey wheel

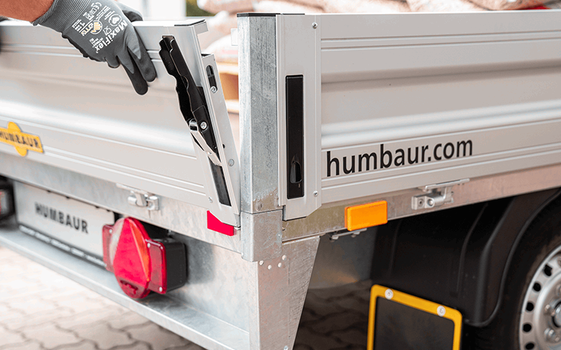

    Removable corner stanchions with slots for equipping the trailer with optional equipment

  • Electrics

    13-pin plug

    Humbaur multifunctional lighting with reversing lights integrated in the underrun protection

Comparison of models

Show all 22 models
Model Max. permissible load in kg Load capacity in kg Overall dimensions in mm (LxWxH) Internal dimension in mm (LxWxH) braked Load height in mm Tyres in inches
HT 202616 2000 1570 4057 x 1713 x 1040 2650 x 1650 x 300 ✓ 700 13
HT 203116 2000 1538 4514 x 1713 x 1060 3100 x 1650 x 300 ✓ 720 13
HT 253118 2500 1975 4488 x 1913 x 1110 3100 x 1850 x 350 ✓ 735 15
HT 303118 3000 2480 4488 x 1913 x 1135 3100 x 1850 x 350 ✓ 755 14
HT 353118 3500 2910 4788 x 1913 x 1140 3100 x 1850 x 350 ✓ 770 14
HT 253121 2500 1970 4475 x 2163 x 1110 3100 x 2100 x 350 ✓ 725 15
HT 303121 3000 2445 4475 x 2163 x 1135 3100 x 2100 x 350 ✓ 755 14
HT 353121 3500 2885 4501 x 2163 x 1140 3100 x 2100 x 350 ✓ 770 14
HT 254118 2500 1905 5488 x 1913 x 1110 4100 x 1850 x 350 ✓ 750 15
HT 304118 3000 2410 5488 x 1913 x 1135 4100 x 1850 x 350 ✓ 755 14
HT 354118 3500 2862 5517 x 1913 x 1140 4100 x 1850 x 350 ✓ 770 14
HT 254121 2500 1885 5476 x 2163 x 1110 4100 x 2100 x 350 ✓ 725 15
HT 304121 3000 2358 5476 x 2163 x 1135 4100 x 2100 x 350 ✓ 755 14
HT 354121 3500 2825 5501 x 2163 x 1140 4100 x 2100 x 350 ✓ 770 14
HT 305221 GR 3000 2202 6635 x 2136 x 1120 5220 x 2070 x 350 ✓ 770 14
HT 355221 GR 3500 2614 6635 x 2136 x 1120 5220 x 2070 x 350 ✓ 780 14
HT 305225 GR 3000 2150 6900 x 2536 x 1120 5220 x 2470 x 350 ✓ 770 14
HT 355225 GR 3500 2522 6900 x 2536 x 1120 5220 x 2470 x 350 ✓ 780 14
HT 306221 GR 3000 2095 7620 x 2136 x 1120 6220 x 2070 x 350 ✓ 770 14
HT 356221 GR 3500 2517 7660 x 2136 x 1120 6220 x 2070 x 350 ✓ 780 14
HT 306225 GR 3000 1980 7910 x 2536 x 1120 6220 x 2470 x 350 ✓ 770 14
HT 356225 GR 3500 2408 7870 x 2536 x 1120 6220 x 2470 x 350 ✓ 780 14
Employee works at a computer with a headset and smiles | © Humbaur GmbH

Would you like help configuring the model you want?

We would be happy to advise you on the configuration of your personalised HT trailer!

Arrange a consultation now

Humbaur specialist partners near you

We have more than 500 specialist partners throughout Germany providing sales and service support. Find a Humbaur partner in your area!

Find a dealer now

All information is provided without guarantee. Subject to change without notice. Illustrations may show optional extras. Accessories are available as an option.
